All items are in original boxes and shipped from Japan.
Condition : New, all accessories are included.
Specifications
Conductor: α-OCC conductor (62 strands/0.127mm) x 7 x 3; Outer Diameter: 3.8mm
Insulation: Audio-grade flexible PVC (Red, White, Green); Outer Diameter: 5.2mm
Sheath 1: RoHS-compliant audio-grade flexible PVC blended with carbon powder (Inner layer)
Sheath 2: RoHS-compliant audio-grade flexible PVC (Outer layer); Outer Diameter: 18.0mm
Shield: Braided 0.12mm α-conductor strands
Finished Appearance: Nylon yarn braid; Outer Diameter: Approx. 18.8mm
Features

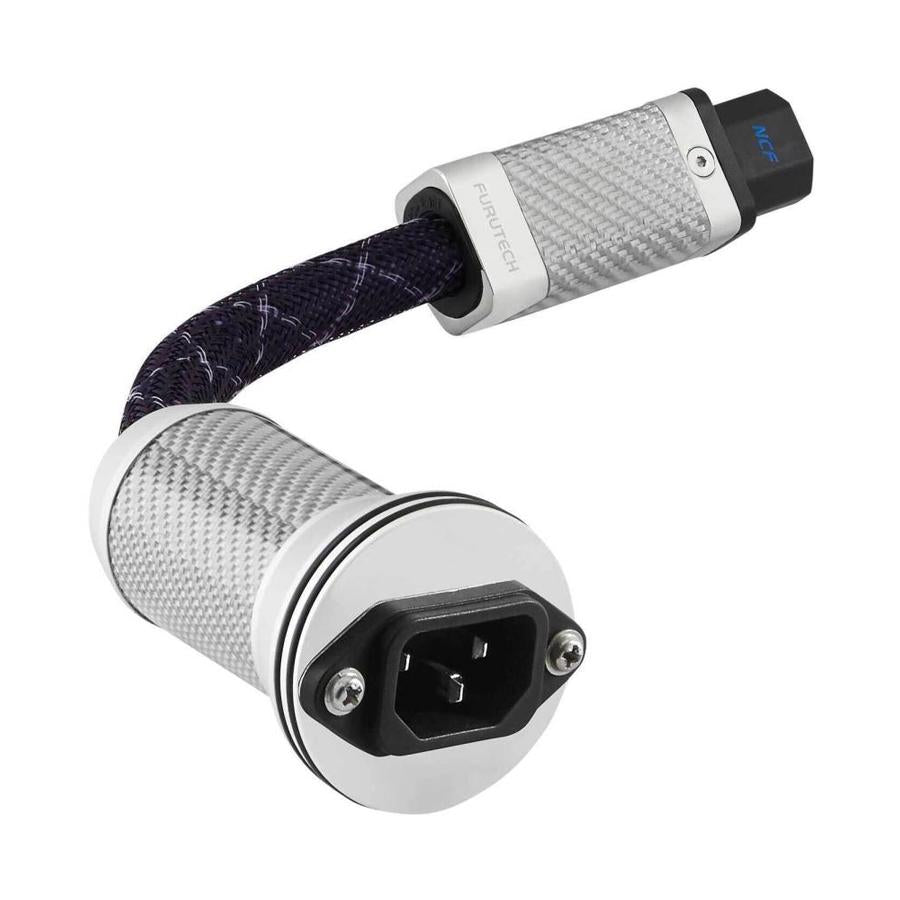

A power supply unit featuring a built-in adapter-type filter designed to thoroughly eliminate noise components from the AC power supply.
Inserted between the power cable and a power strip or audio equipment, it not only blocks external noise but also prevents noise from the power supply section from radiating outward, ensuring a clean power supply.

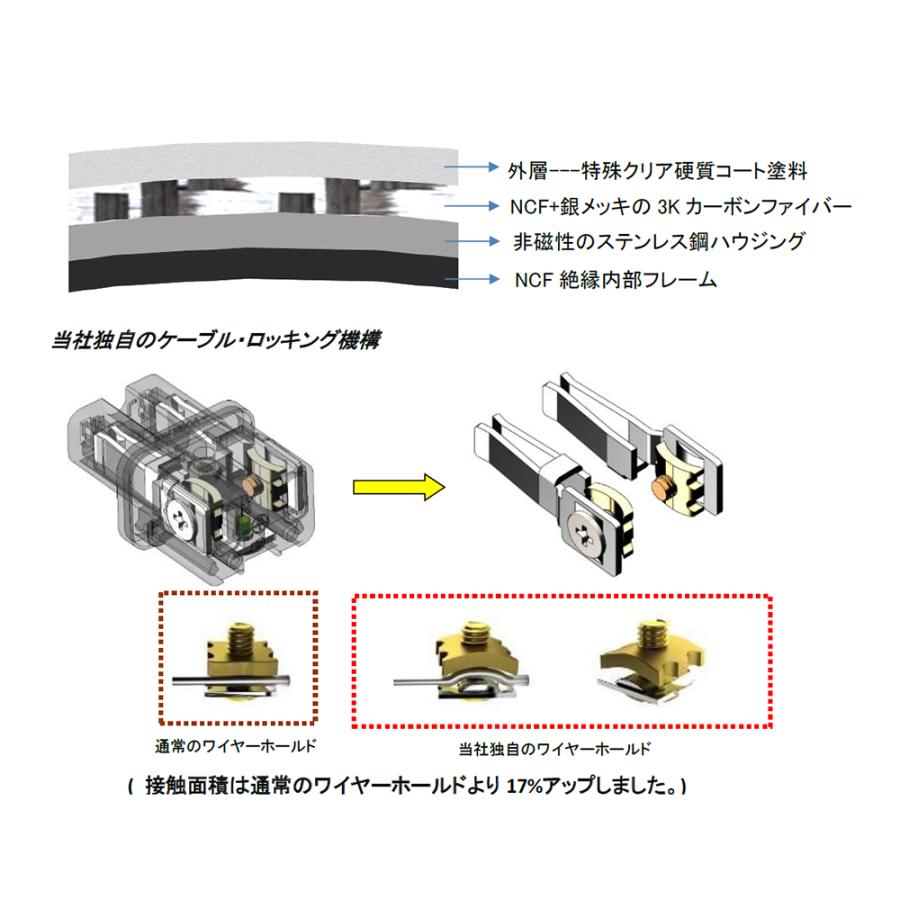

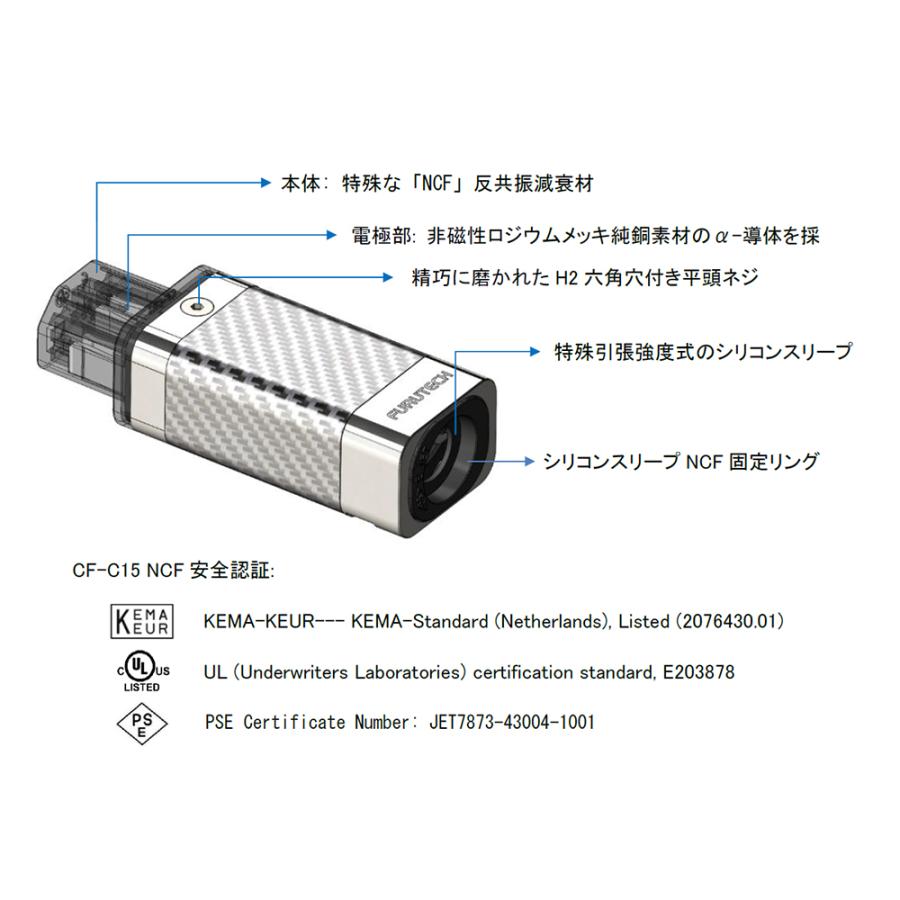

The inlet plug utilizes Furutech’s top-tier CF-C15 NCF(R) model. It features a three-layer structure: a housing machined from stainless steel alloy, an interior made of special vibration-damping resin, and an exterior finished with carbon fiber. Additionally, the cable clamp employs a heavy, special metal with vibration-damping properties to deliver powerful vibration suppression. The special material "NCF" is also incorporated for static electricity control; this enhances static-suppressing effects alongside the powerful vibration damping. These features suppress noise generation, heighten the sense of silence, and eliminate sonic murkiness, thereby revealing the source material's true, previously hidden appeal.
The electrode sections utilize highly conductive pure copper, finished with rhodium plating and the "α-Process" (cryogenic and demagnetizing treatment). It is also equipped with a ground jumper to suppress unwanted radiated noise and improve the overall quality of the audio system. The cable utilizes high-density α-Conductor (OCC material) strands. It features a dual-sheath structure using high-performance PVC infused with carbon powder—a material that blocks vibration and external noise while maintaining flexibility. The cable's exterior is encased in a high-strength nylon braid to further enhance sound quality. The combination of a specialized isolation structure and a highly rigid plug ensures comprehensive vibration control, effectively blocking harmful external vibrations from entering through the power cable.

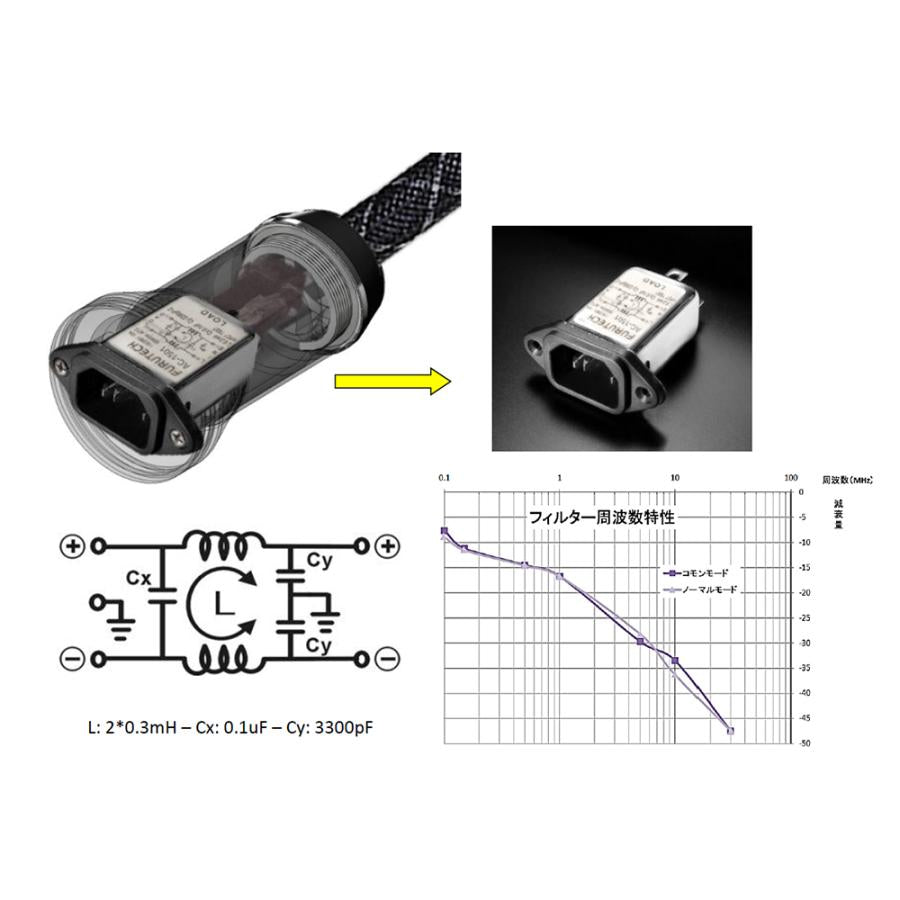

The filter circuit—integrated directly into the inlet connector—consists of a series coil and capacitor, delivering noise attenuation of approximately 8dB at 100kHz and 14dB at 500kHz. The electrodes are rhodium-plated, and the filter employs an extra-thick coil to minimize loss; this design boosts noise removal efficiency while preserving the signal's dynamic energy. It is highly effective at eliminating high-frequency interference, such as switching noise.
The filter housing is precision-machined from aluminum alloy and finished with carbon fiber. Inside, the electromagnetic wave-absorbing material "GC-303" is positioned without making direct contact with the inlet filter, while the cable clamp utilizes a heavy-duty, vibration-damping metal. The housing itself acts as a stabilizer, further eliminating vibration and electromagnetic noise. Additionally, the unit incorporates "Neo-Damper Technology"—utilizing specialized vibration-damping materials—to provide superior vibration control compared to conventional designs.
(α-Conductor: Refers to α-OCC, μ-Conductor, or μ-OFC conductors that have undergone the "α-Process"—a combination of cryogenic treatment at -196°C and a special electromagnetic field treatment.)

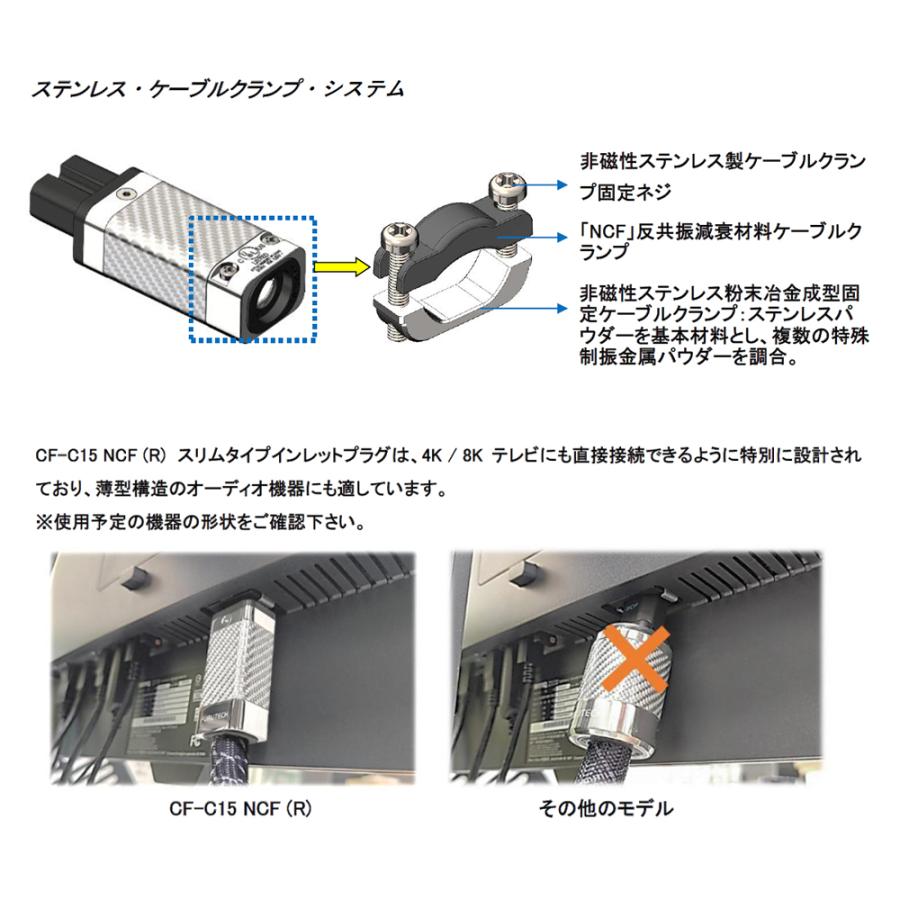

The CF-C15 NCF (R) slim-type inlet plug is specially designed for direct connection to 4K/8K televisions and is also suitable for low-profile audio equipment.
Please check the shape of your equipment's inlet before use. Effect
Vibrations entering via the power cable are attenuated to one-tenth or less of their original level.
Resonances detrimental to sound quality are suppressed.
